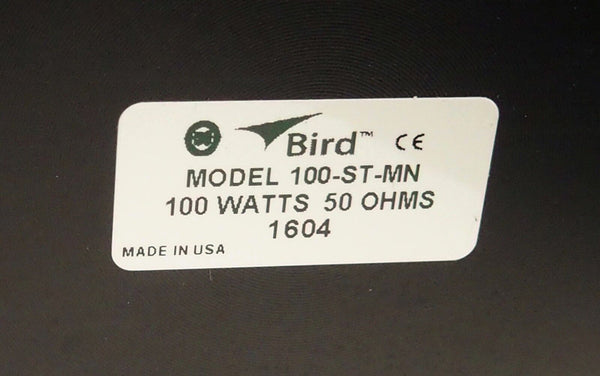

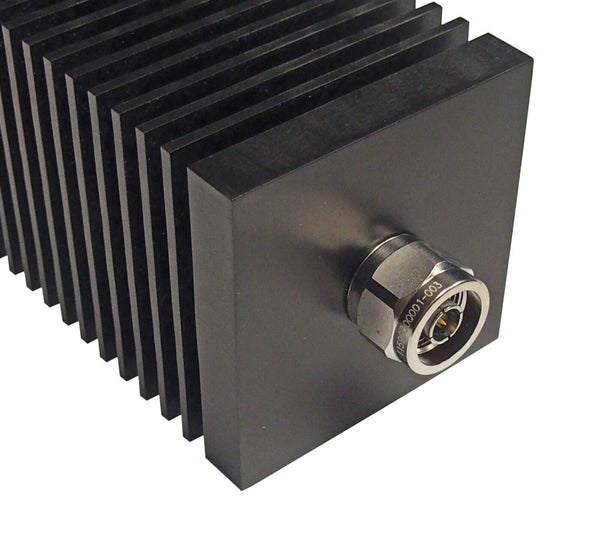

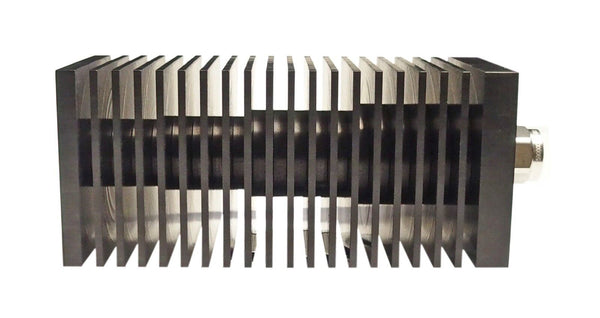

This item is a New Bird 100-ST-MN 100 Watt 50 Ohm Continuous Duty RF Load with male N Connector. The load is rated up to 4 GHz. The load measures approximately 6.95" Long x 2.75" square. The load is rated at 100 watts continuous duty. The load has one female connector on it. This item is new inventory at Henry Radio in Los Angeles, California. Shipping anywhere in the USA is Free. International shipping will be quoted on request.
Bird Technologies - The RF Experts100-ST Series
100-ST Series, 100 Watt, Convection-Cooled Dry Terminations
Bird's RF terminations are world renowned for their high-quailty, robust construction and conservative power ratings. The use of non-magnetic materials and plating provide safety when used in high magnetic fields such as MRI.
For Aluminum Nitride (BeO free) see model series 100-NST
- Wide variety of connectors
- Rugged Reliability provides years of trouble free use
- Compact size, tapped mounting holes for fixed installations
PRODUCT SPECIFICATIONS:
| Item No |
100-ST Series |
| Item Name |
100 Watt, Conduction-Cooled Dry Terminations |
| Power Rating |
100 W |
| Frequency Range and VSWR |
DC to 1 GHz @ 1.10:1 max.
1 GHz to 4 GHz @ 1.25:1 max. |
| Temperture Range |
-40 to +40°C |
| Product Type |
Dry (Convection-Cooled) |
| Operating Position |
Any |
| Connectors |
N, TNC, BNC, 7/16 DIN, MD |
| Mounting Centers |
|
| Finish |
Black Anodized Fins |
| Dimensions |
(with N-type connector): 6.95" x 2.75" x 2.75" (L x W x H)
174 x 69.9 x 69.9 mm |
| Weight |
2.62 lbs. (1.20 kg) |
|
