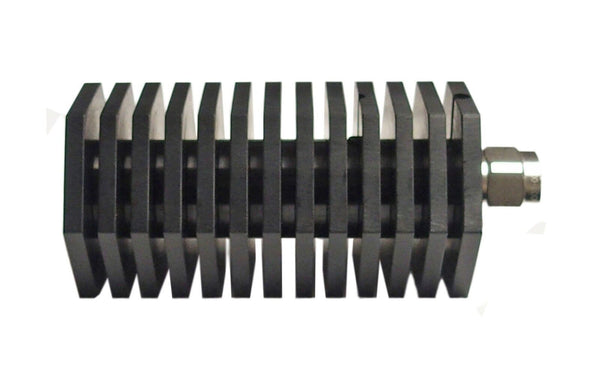

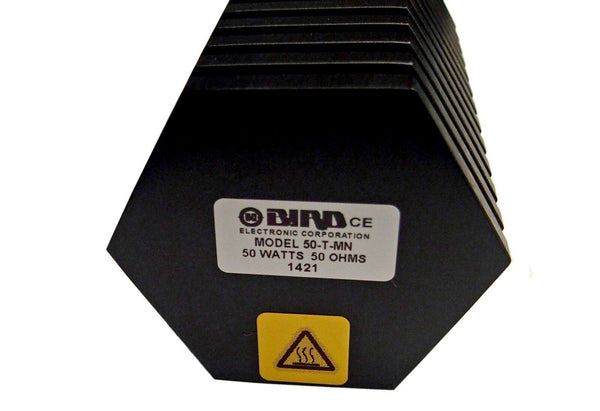

This item is a new Bird 50-T-MN 50 Watt 50 Ohm Continuous Duty RF Load with male N Connector. The load is rated up to 4 GHz. It measures approximately 4.7" long x 2.3" diameter. The load is rated at 50 watts continuous duty. The load has one male connector on it. You may optionally choose a Bird 50-T-FN with a female N connector if you choose. But if that option is not noted, the default item is the 50-T-MN. This item is new inventory at Henry Radio in Los Angeles, California. Shipping anywhere in the USA is Free. International shipping will be quoted on request.
Bird Technologies - The RF Experts50-T Series
50-T Series, 50 Watt, Convection-Cooled Dry Terminations
Bird's RF terminations are world renowned for their high-quailty, robust construction and conservative power ratings. The use of non-magnetic materials and plating provide safety when used in high magnetic fields such as MRI.
For Aluminum Nitride (BeO free) See 50-NT-MN
- Wide variety of connectors
- Compact size, easily transportable. Rugged Reliability provides years of trouble free use
- Optionally available as a Calibrated Mismatch Load See 50-T-MN-3R00
PRODUCT SPECIFICATIONS:
| Item No |
50-T Series |
| Item Name |
50 Watt, Convection-Cooled Dry Terminations |
| Power Rating |
50 W |
| Peak Power |
|
| Frequency Range |
|
| Frequency Range and VSWR |
DC to 1 GHz @ 1.10:1 max
1 GHz to 4 GHz @ 1.25:1 max. |
| VSWR |
|
| Temperture Range |
-40 to +40 °C |
| Product Type |
Dry (Convection-Cooled) |
| Operating Position |
Any |
| Body |
Aluminum |
| Connectors |
N, BNC, TNC, SMA, 7/16 DIN |
| Finish |
Black Anodized, Silver or Tri-Alloy Plated Connectors |
| Dimensions |
(with N-type connector): 4.7" L x 2.3" Dia.
(119.4 x 58.50 mm) |
| Weight |
1.13 lbs. (0.52 kg) |
|
